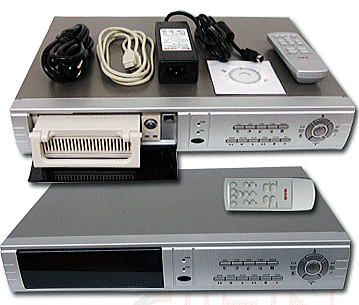

　【M-JPEG 4-Channel Stand-alone DVR】　　　　　　　　　　

Mail to:sales@borderless-j.com

■　Feature ■

● The Third Generation MJPEG compression

● Available in NTSC & PAL system

● Real-time display: 120fps(NTSC)/100fps(PAL)

● Selectable 24hrs. continuous, motion detection & sensor triggered recording mode

● Selectable motion detection area & sensitivity adjustment for individual camera

● PTZ control via built-in RS485 port

● PC playback & backup via built-in USB 2.0 port

● With auto switch display function

● With video loss alarm function

● With power recovery auto-record function

● Removable HDD caddy supports up to 200GBIDE HDD×1

● IR remote control included

● Audio I/O (optional)

● VGA video output (optional)

　Market Unit Price　USD 1600.00

　　Whole Sale Unit Price　　　USD　700.00

　　*FOB Tokyo
　　*Terms of payment: TT in advance
　　*Minimum Order Lot:12 sets

　　※If you order over 100pce, we offer special price. Please contact us.

■　Technology Parameter 　■

Sort	M-JPEG 4-Channel Stand-alone DVR
Model	DVR-001
Compression Format	Motion JPEG(12~20K Bytes per frame)
Video Input / Output	BNC 4-channel inputs / 2-channel outputs (Composite)
Display Mode	Quad; full screen of single picture; auto switch
Display Frame Rate	NTSC: 120fps / 4x30fps PAL: 100 fps / 4x25fps
Recording Frame Rate	NTSC: max. 30fps / 4x7.5 PAL: max. 25fps / 4x6.25fps
Display Resolution	NTSC: 720x480 PAL: 720x576
Recording Resolution	NTSC: 320x112, 640x224 PAL: 320x136, 640x272
HDD Rack	Removable HDD caddy supports up to 500GB IDE HDD
Recording Time	NTSC: 155 hours with 120GB HDD @ 15fps 　PAL: 194 hours with 120GB HDD @ 12fps
Recording Mode	Selectable 24 hrs. Continuous; motion detection; sensor triggered; auto record
Sensors & Alarm	Supports 4 sensor inputs(NO or NC), 1 relay output (10 Pin DIP Switch)
USB Interface	USB2.0
VGA	Optional
P/T/Z	RS485 interface (PELCO-D, PELCO-P, SAMSUNG, BO1, NEON, CTNCOM)
Remote Controller	Included to control all functions on front panel
Power Adapter	DC 12V, 5A
Dimensions(DWH)	40027570 mm
