　【M-JPEG 8-Channel Stand-alone DVR】　　　　　　　　　

Mail to:sales@borderless-j.com

■　Feature ■

● MJPEG compression

● Available in NTSC & PAL system

● Selectable recording modes: 24hrs. continuous, motion detection & sensor triggered with pre-alarm watermark

● Configurable recording picture quality, resolution & frame rate

● Selectable motion detection area & sensitivity adjustment for individual camera

● Triplex operation

● Password protection

● Easy backup via USB or CD-RW(optional)

● VGA video output(optional)

● Multiplex display modes:1/4/8/16 pictures on screen, Zoom, Auto switch, Freeze, PIP(D3604 only)

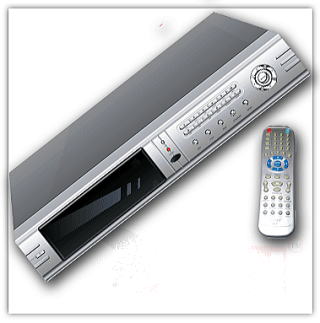

● IR remote controller included

● Network: remote control DVR (monitoring, recording, playing back)

　Market Unit Price　USD 2380.00

　　Whole Sale Unit Price　　　USD　1100.00

　　*FOB Tokyo
　　*Terms of payment: TT in advance
　　*Minimum Order Lot:12 sets

　※If you order over 100pce, we offer special price. Please contact us.

■　Technology Parameter 　■

Sort		M-JPEG 4-Channel Stand-alone DVR
Model		DVR-002
Compression Format		Motion JPEG
Video Output		BNC 2-channel, S-Video 1-channel
Video Input		BNC8-channel
Display Resolution		NTSC: 720×480 PAL: 720×576
Recording Resolution		NTSC: 720×240 / 360×240 　PAL: 720×288 / 360×288
Display Frame Rate	NTSC PAL	240fps/ 8×30fps 　200fps/ 8×25fps
Record Frame Rate	NTSC PAL	Max.120fps/8×15fps 　Max.100fps/8×12.5fps
Audio Input		-8dB --- 22k, RCA×4
Audio Output		-8dB --- 92dB, RCA× 2
Sensor Input		NO or NC, 8-channel
Relay Alarm Output		NO or NC, 1-channel
Recording Mode		24 hrs.×7 days schedule, motion detection, sensor or network triggered
Simplex/Duplex/Triplex		Triplex
Network Interface		RJ45 for LAN & Internet
VGA Output		N/A
PTZ Control		RS485, 4 protocols (PELCO-D, PELCO-P, NEON&SAMSUNG) supported
HDD Capacity		Default: One removable caddy + one fixed rack Option: One CD-RW+ one fixed rack
Remote		Included
Power		DC12V/ 5A (Adaptor Supply)
Storage		-20~65℃ / 20~95%RH
Operation		-5~50℃ / 20~85%RH
Dimension ( Lx Wx H )		430x385x65mm
