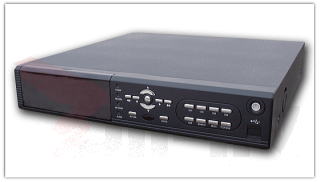

　【MJPEG 4-Channel Stand-alone DVR】　　　　　　　

Mail to:sales@borderless-j.com

　　　

■　Feature ■

● True triplex functionality :(Simultaneous Playback/Record/Network)

● 10 days continue recording at 25 fps with 250G byte HD

● Built in fixed HD rack

● Recording and compressing video signal real time

● Optional : NTSC and PAL system / VGA function.

● Individual recording frame / video factor adjustment for each channel

● With motion detection / video loss alarm function

● High quality color video at 50 or 60 fps recording/playback

● Display resolution : NTSC 704x480; PAL 704x 576

● With IR remote control unit / PTZ function

● With power recovery auto-record function

● Network transmit: MPEG 4 compressing (Support TCP/IP:

StaticIP/DHCP/PPPoE up to 4 users) IE view only.

● OSD : Support Multi-Language; Audio:Support 8/16/20 KByte/sec;

USB port:Support avg. 480KByte/sec for media Backup.

　Market Unit Price　USD 2380.00

　　Whole Sale Unit Price　　　USD　1100.00

　　*FOB Tokyo
　　*Terms of payment: TT in advance
　　*Minimum Order Lot:12 sets

　※If you order over 100pce, we offer special price. Please contact us.

■　Technology Parameter 　■

Sort	MPEG-4 4-Channel Stand-alone DVR
Model	DVR-005
Compression Format	MPEG-4
Video Input / Output	BNC 4-channel inputs / 1-channel outputs (Composite)
Display Speed(full mode)	NTSC: Max120fps / 4x30fps PAL: 100 fps / 4x25fps
Display Speed(Each mode)	NTSC: 1fps-Max.30fps; PAL:1fps-Max.25fps
Video Quality	Low@128Kbps;　Normal@256Kbps;　High@512Kbps;　Highest@1Mbps
Hard Disk Capacity	Over 500Gbyte; ATA-100 interface HDDx1
Recording Time	23 days with 500GB HD @ 25 fps for Continuous Recording mode
Recording Mode	Continuous, Motion detection, Sensor activated, Time schedule
Sensors & Alarm	4 Input, 1 Output (Alarm) (12 Pin DIP Switch), 2 Pin for RS485 control Pan/Tilt/Zoom
Audio	1ch in 1ch out
USB Interface	USB2.0
VGA	Yes
P/T/Z	RS485 interface (PELCO-D, PELCO-P, SAMSUNG, BO1, NEON, CTNCOM)
Network	10/100 Mbps Ethernet
Remote Controller	Included to control all functions on front panel
Power Adapter	DC 12V, 5A
Dimensions(DWH)	31522452 mm
