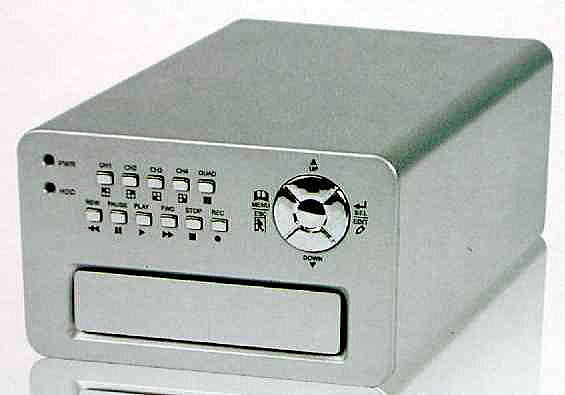

M-JPEG 4-Channel Stand-alone DVR(Compact Model)　　　　　　

■　Feature ■

● Small & exquisite design for homes, small retail stores, or business premises

● The Third Generation MJPEG compression

● Available in NTSC & PAL system

● Display resolution: 720×480(NTSC)/720×576(PAL)

● Real-time display: 120fps(NTSC)/100fps(PAL)

● Selectable 24hrs. continuous, motion detection recording mode

● Selectable motion detection area & sensitivity adjustment for individual camera

● PC playback & backup via built-in USB 2.0 port (D3593 only)

● With auto switch display function

● With power recovery auto-record function

● Fixed/removable HDD caddy supports up to 500GB IDE HDD×1

　　Market Unit Price　USD 1380.00

　　Whole Sale Unit Price　　　USD　550.00

　　*FOB Tokyo
　　*Terms of payment: TT in advance
　　*Minimum Order Lot:12 sets

　※If you order over 100pce, we offer special price. Please contact us.

■　Technology Parameter 　■

Sort	M-JPEG 4-Channel Stand-alone DVR
Model	DVR-006
Compression Format	Motion JPEG(12~20K Bytes per frame)
Video Input / Output	BNC 4-channel inputs / 2-channel outputs (Composite)
Display Mode	Quad; full screen of single picture; auto switch
Display Frame Rate	NTSC: 120fps / 4x30fps PAL: 100 fps / 4x25fps
Recording Frame Rate	NTSC: max. 30fps / 4x7.5 PAL: max. 25fps / 4x6.25fps
Display Resolution	NTSC: 720x480 PAL: 720x576
Recording Resolution	NTSC: 320x112, 640x224 PAL: 320x136, 640x272
HDD Rack	Fixed HDD rack supports up to 500GB IDE HDD
Recording Time	NTSC: 155 hours with 120GB HDD @ 15fps 　PAL: 194 hours with 120GB HDD @ 12fps
Recording Mode	Selectable 24 hrs. Continuous; motion detection; sensor triggered; auto record
Sensors & Alarm	N/A
USB Interface	N/A
VGA	N/A
P/T/Z	N/A
Network	N/A
Remote Controller	N/A
Power Adapter	DC 12V, 3A
Dimensions(DWH)	25813280 mm
